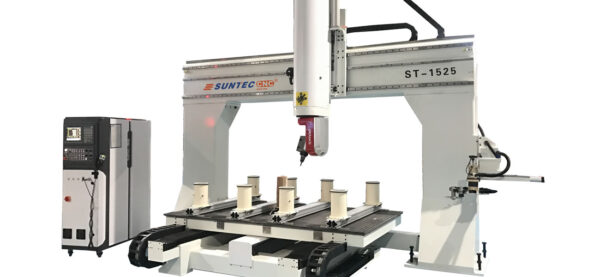

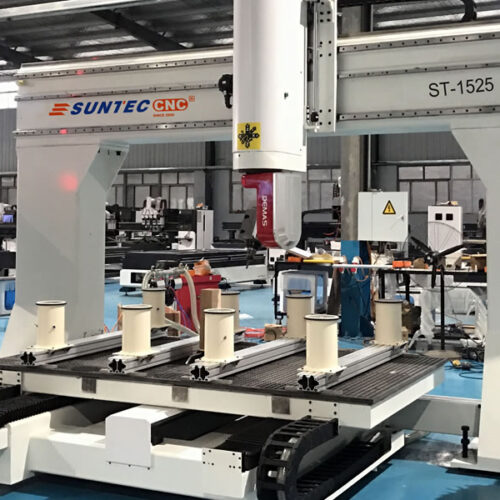

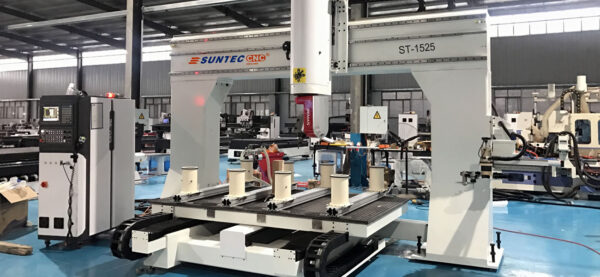

customized furniture making 5 axis CNC router center ST-1525

Engineered for solid wood, PVC/ABS, and carbon fiber processing (±0.01mm accuracy). Features ±110°A/±220°C rotation for complex joinery, 3D reliefs, and grooving. Furniture-optimized vacuum table secures small workpieces. Premium Yaskawa motors + 24k RPM spindle deliver 40m/min cutting speeds. Heat-treated steel frame ensures stability during heavy 5-ton operations.

Description

Can be applied to solid wood furniture, PVC/PP/PE, ABS, rubber, polyurethane, glass fiber, carbon fiber and other composite materials for grooving, chamfering, punching, hook grooves and other processes and multiple angles of high precision and high efficiency processing.

Number	Description	Parameter
1	X,Y,Z Working Area	15002500600mm
2	Table Size	2000×3500mm
3	X,Y,Z Traveling Positioning Accuracy	±0.01/600mm
4	A C ROTARY	A 110 degree C 220 degree

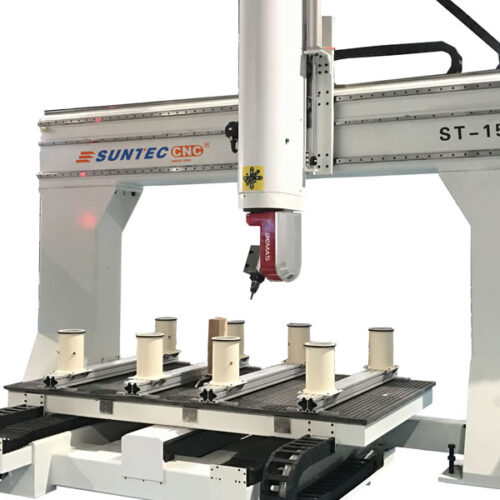

5	Table Surface	Vacuum table with vacuum cups for fix small furniture
6	Frame	Big Steel Tube Structure with heat treatment
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	(Without Spindle) 10 Kw
10	Max. Rapid Travel Rate	40000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	12 kw
13	Spindle Speed	0-24000RPM
14	Drive Motors	Yaskawa Motors
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
16	Command Language	G Code
17	Operating System	Syntec Control System/TPA /osai
18	Computer Interface	USB
19	Flash Memory	512M
20	Collet	HSK-F63
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3/UcancameV9 powermill UG software
23	Running Environment Temperature	0 – 45 Centigrade
24	Relative Humidity	30% – 75%
25	Packing Size	5500X2100X2300mm
26	N.W.	5000KG
27	G.W.	6000kG
28	Optional Parts	Dust Collector/ Dust Hoods for three Axis
		Vacuum Pump
		Rotary System
		Mist-cooling System
		Delta/ Panasonic Servo Motors
		Colombo Spindle
